Solution

Biodegradable Plastic Compounding

Typical applications as plastic alloy, starch-filled compound, bio-mass filled compound or mineral powder filled compound for biodegradable plastics as PLA, PBAT, PBS, PPC , PCL, TPS and PHA etc.

Advantage



1.Premix and long L/D for better dispersion

2.Needs special twin-screw side degassing system

3.Air cooling strand cutting system

4. Underwater Cutting System



Technical Specifications of Extruder

Model L/D Screw Speed (rpm) Motor Power (KW) Specific Torque( T/A3) Capacity Range ( kg/hr)
CJWH-52 40～56 300 45 9 150
CJWH-65 40～56 300 75 9 240
CJWH-75 40～56 300 132 9 440
CJWH-95 40～56 300 250 9 820
CJWS-52 40～56 300 55 11 190
CJWS-65 40～56 266 90 11 310
CJWS-75 40～56 300 160 11 550
CJWS-95 40～56 300 315 11 1060
CJWS-75 Plus 44～56 330 200 13.5 700

CJWH75 PLA/PBAT/PBS + starch (30%) 500 kg/h case

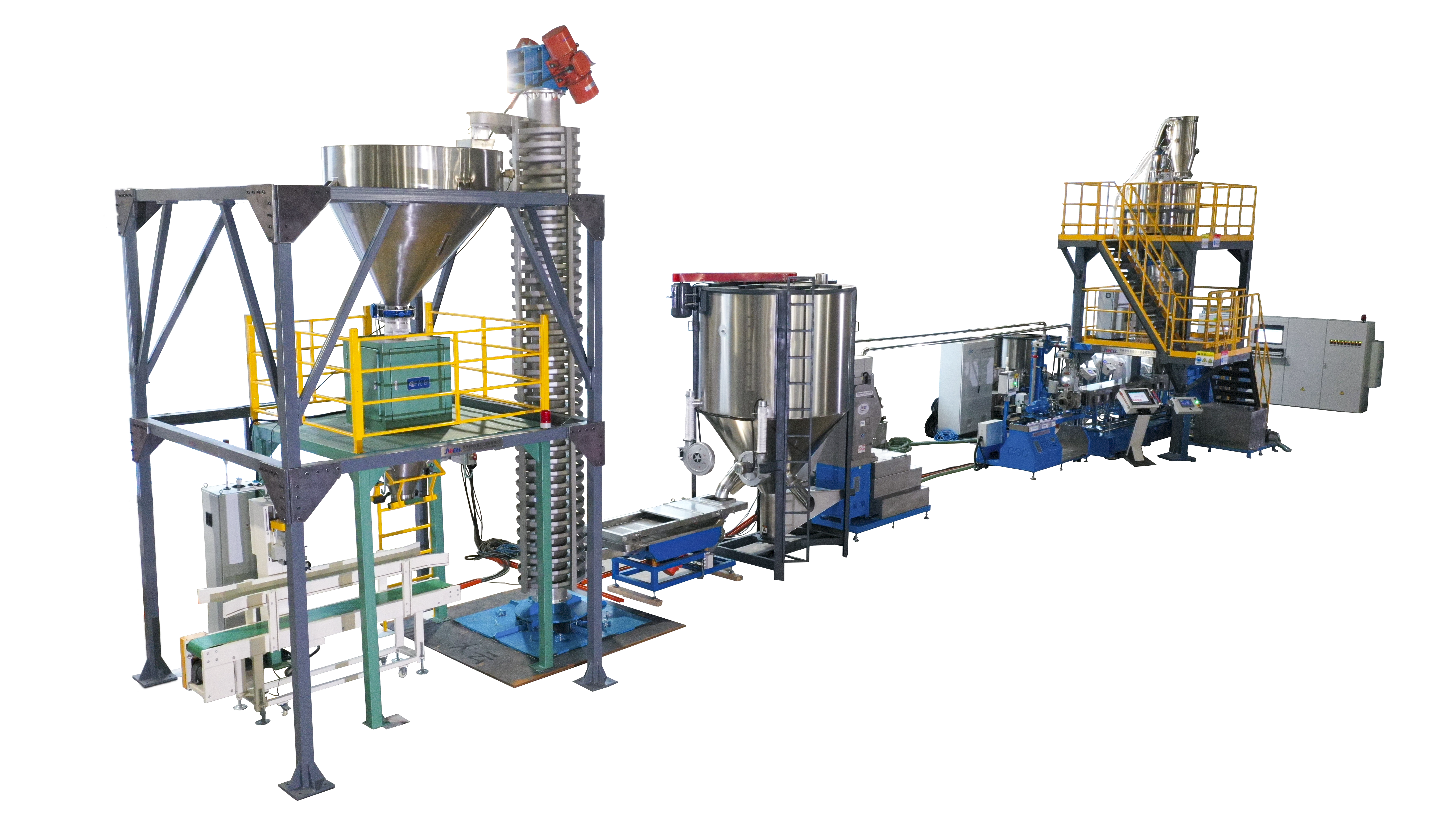

CJWH95 PBAT + starch 1000 kg/h Portugal case

Jwell Trusted By

Why Choose Jwell

  • High Quality Jwell machine barrels , screws , T-die and roller all by ourselves , we control the machine quality from drawing design to final installation .
  • Save Your 30% Money Comparable to the quality of Top Germany’s extruders , reasonable affordable prices . High effective single screw extruders and twin screw extruders .
  • Global Sales Service Jwell has sales office in Turkey , Vietnam , Thailand , Brazil , Canada , there are over 500 plastic engineers serve Jwell customer all over the world .
  • On Time Delivery Of Spare Parts We have almost all key parts of our products in stock and We remotely monitor the cloud status of the machine and provide timely maintenance suggestions ,we promise your extruder will never stop running .

Get A Free Quote
