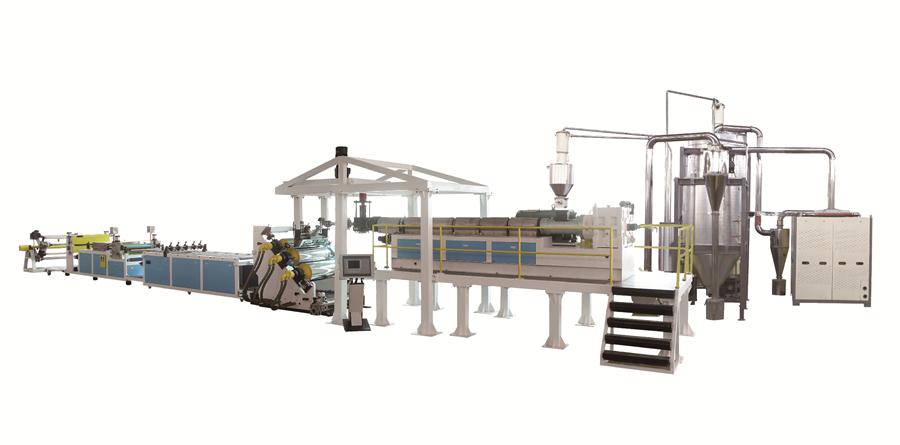

PET single screw extrusion line

APET, PETG, CPET single-layer or multi-layer sheet extrusion machine

It’s one of the most advanced production lines with matured technology and stability in China. Compared with other same kind equipment, it’s over 30% higher in overall efficiency. This line is suitable for APET, PETG, CPET as well.

PETG sheet

PETG is called low temperature PET, it’s a new environment-friendly packing material with features such as high luster, good transparency, excellent barrier property, self-adhesion, which is used for glue bonding and high-frequency processing.

CPET sheet

CPET is a kind of modified PET, with good resistance to high temperature, It is usually used for package in microwave oven.

PET stereoscopic optical grating sheet

It can be used as the top grade package for cosmetics, medicine, tobacco & alcohol and common goods such as stationery, advertisements, posters and all kinds of cards.

Technical Specification

Model Extruder model Sheet thickness

(mm)

Main Motor Power

(kw)

 Capacity

(kg/h)

Multi layer JW120/65-1000 0.15~1.5 110/45 500
Single layer JW120-1000 0.15~1.5 110 450
High efficient JW120-1500 0.15~1.5 160 800

Used For

video

Jwell Trusted By

Why Choose Jwell

  • High Quality Jwell machine barrels , screws , T-die and roller all by ourselves , we control the machine quality from drawing design to final installation .
  • Save Your 30% Money Comparable to the quality of Top Germany’s extruders , reasonable affordable prices . High effective single screw extruders and twin screw extruders .
  • Global Sales Service Jwell has sales office in Turkey , Vietnam , Thailand , Brazil , Canada , there are over 500 plastic engineers serve Jwell customer all over the world .
  • On Time Delivery Of Spare Parts We have almost all key parts of our products in stock and We remotely monitor the cloud status of the machine and provide timely maintenance suggestions ,we promise your extruder will never stop running .
